- Profil bas
- Facile d'entretien
- Longue durée de vie
- Capacité de charge élevée
- Conception sandwich
- Conforme à la norme TA Luft

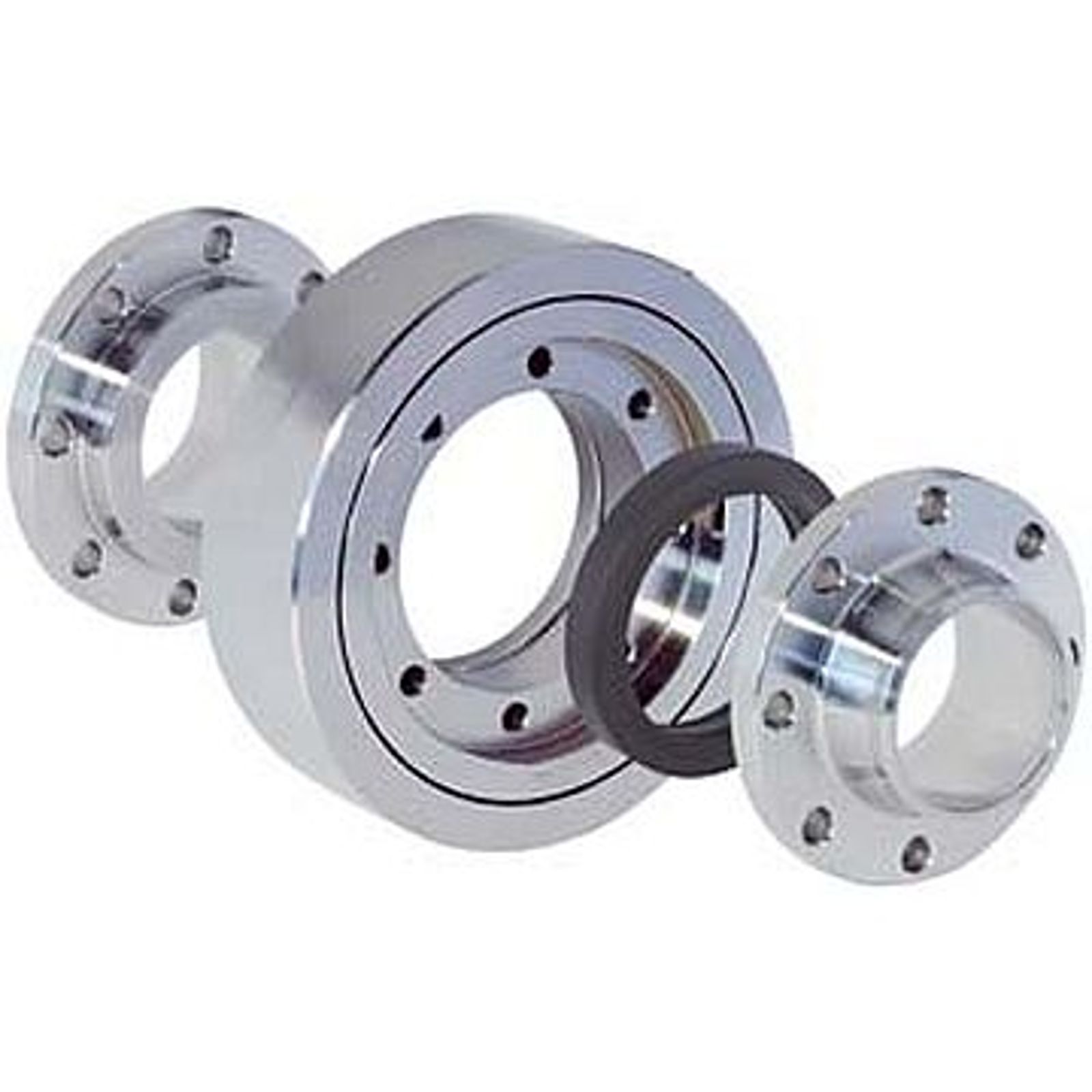

The use of our multifunctional swivel joint - D2000 - optimizes nearly all liquid transports.
Whether in the mineral oil, food or chemical industry, the D2000 meets the highest standards. Multiple variants allows the customer to configure to meet their own specific requirements. Due to the sandwich design, the bearing module is separated from the product-carrying components. It can therefore be used as a standard swivel joint for nearly all media with temperatures ranging from -50 °C to +250 °C with a max operating pressure of 580 psi (40 bar).
Single Track Swivel Joint - D0002
The D0002 series forms the basis for our range. It has a minimal structural length, minimal external diameter and minimal weight.
Swivel Joint for Chemical Industry - D1133
Our D1133 is a variant of the basic D0002. It is the ideal articulation for nearly all applications in the chemical industry. It has a minimal structural length, minimal external diameter and minimal weight.
Twin Track Swivel Joint - D1010
The D1010 is used where large size swivel joints have to take heavy loads (typically for Emco Wheaton Marine Loading Arms). Both ball tracks of the carbon steel version are hardened and polished. The swivel joint has a high degree of load capacity and long service life, even under extreme loads.
Swivel Joints - D2000
Our D2000 - PTFE Swivel Joint is a variant of the basic form. It is internally lined with PTFE and is equipped with a special seal, making it suitable for extremely aggressive products.

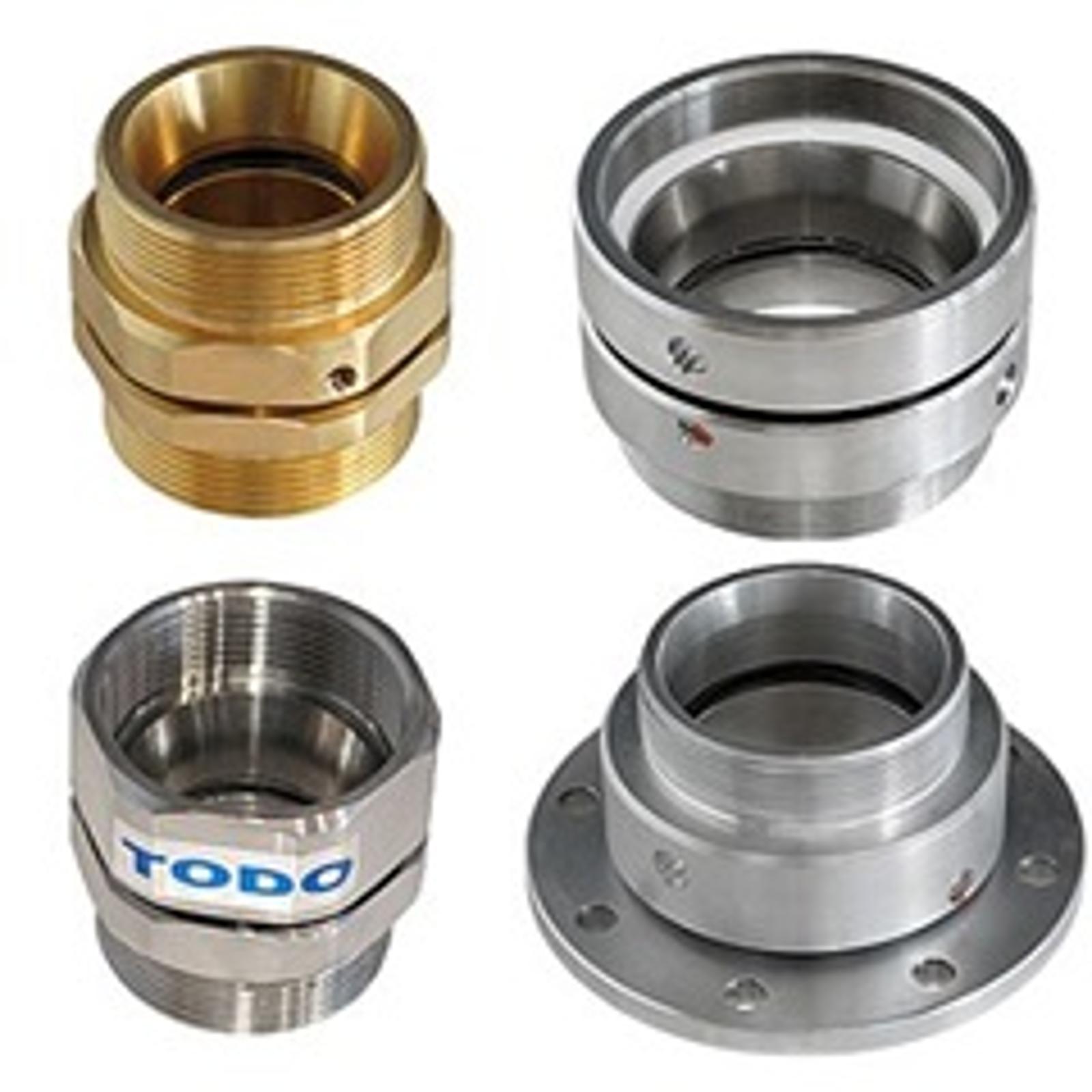

SWIVEL JOINTS
Swivel joints are designed to minimise torque stress on a hose while also permitting free movement.
