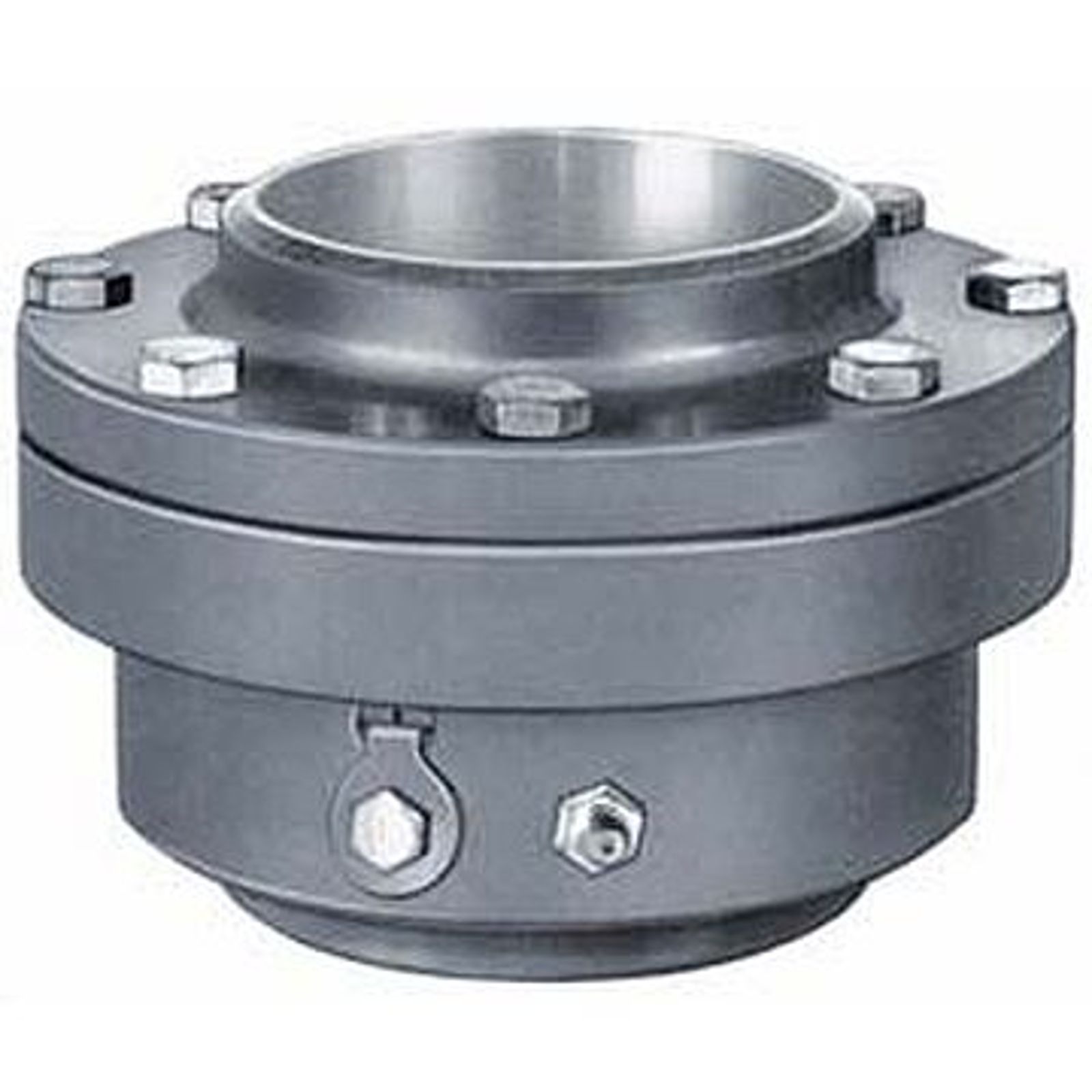

The D0002 Swivel Joint forms the basis for our swivel joints with one ball track. It has a minimal structural length, minimal external diameter and minimal weight.
The internal flange makes it possible to change the seal without removing the swivel joint from the pipeline. The D0002 Swivel Joint can be relubricated via grease nipples. If required, the balls can be removed and replaced by first removing the ball track plug.
This heavy duty Swivel Joint is ideal for most applications. The ball track is hardened and polished, giving the Swivel Joint a high degree of running precision and long service life, even under extreme loads. The sealing surfaces are plated with stainless steel and precision-finished to prevent corrosion, this ensures that the seal that slides along these sealing surfaces is not damaged and will seal perfectly.
Normal attitude horizontal or vertical.
Material:
Seal Material:
Allowable internal pressure (gauge pressure):
Allowable temperature range:
Weight:
