- Connection flange for hose or quick release system E0790
- Bearing with lateral plumber block for connection to site steel work
- Weather proof cover
- Swivel joint D2000
- Swivel joint anchor plate for connection to site steel work
- Connection flange for customer's pipe work
- A bumper ring and wear lugs protect the nozzle for longer service life.

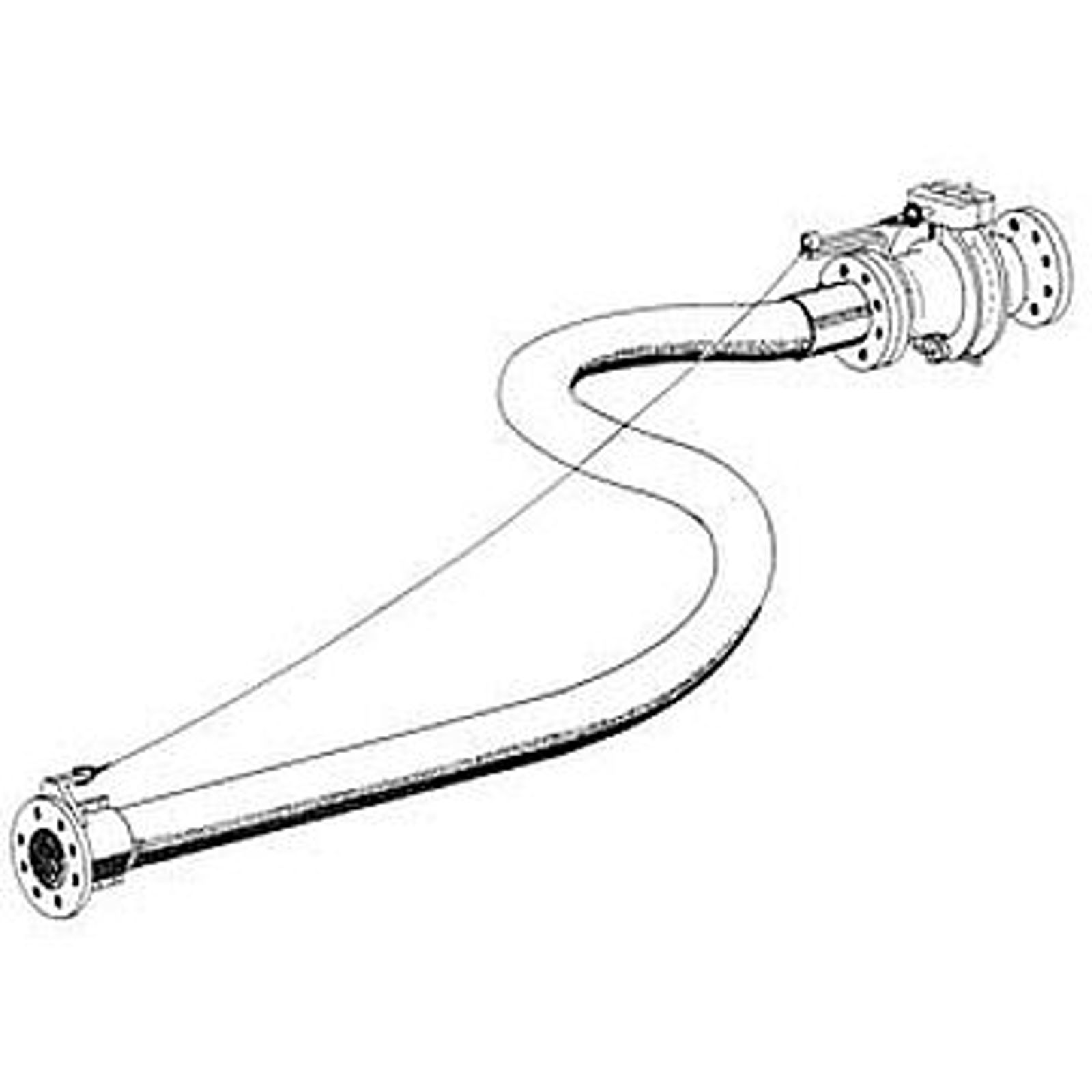

Our Hose Release System is used for the protection of loading hoses during loading/unloading of barges, providing environmentally safe handling of loading hoses.
If the connected loading hose is stretched over the allowable working envelope, the cable will be activated. The shear pin will break and the clamp collar of the release unit will unlock. The two halves of the coupler will divide preventing damage to the installation or the vehicle. The spring loaded poppets cut the product flow of the hose and the vehicle completely so that leakage is avoided.
The hose release system is available in sizes from DN80 to DN100 and up to PN40.
Hydraulic Quick Release System
Our Hydraulic Quick Release System E0790 is used for the automatic separation of a connected loading arm from a tank vehicle in the event of an accidental drive-away whilst still connected. In this event, there is minimal loss of pressure in the rest of the connected supply.
Mechanical Quick Release System
Our mechanical Quick Release System provides automatic disconnection of a loading arm in the event of a tanker accidentally driving away. Simultaneously the product flow will be shut off both upstream and downstream of the disconnection point.
Pneumatic Quick Release System
Our pneumatic Quick Release System provides automatic disconnection of a loading arm in the event of a tanker accidentally driving away whilst simultaneously shutting off the product flow both upstream and downstream of the disconnection point.
