The Emco Wheaton’s marine loading arm design has proven its reliability for more than 15 years for CNG applications.
The design of Emco Wheaton’s CNG arms is based on the company’s established and successful LNG B0300 marine loading arm. For the handling of CNG, this model is capable of handling natural gas at pressures of up to 150 bar while still providing the same emergency shutdown and disconnect capabilities as arms transferring liquids.
The 12-inch CNG marine loading arm encompasses hydraulic drives, control system, blowdown system and a special hydraulic quick connect/disconnect coupler which enables emergency system shutdown while handling gas at high pressure.
The 12-inch CNG marine loading arm encompasses hydraulic drives and a special hydraulic quick connect/disconnect coupler which enables emergency system shutdown while handling gas at high pressure.
The advantages over hose loading facilities are:

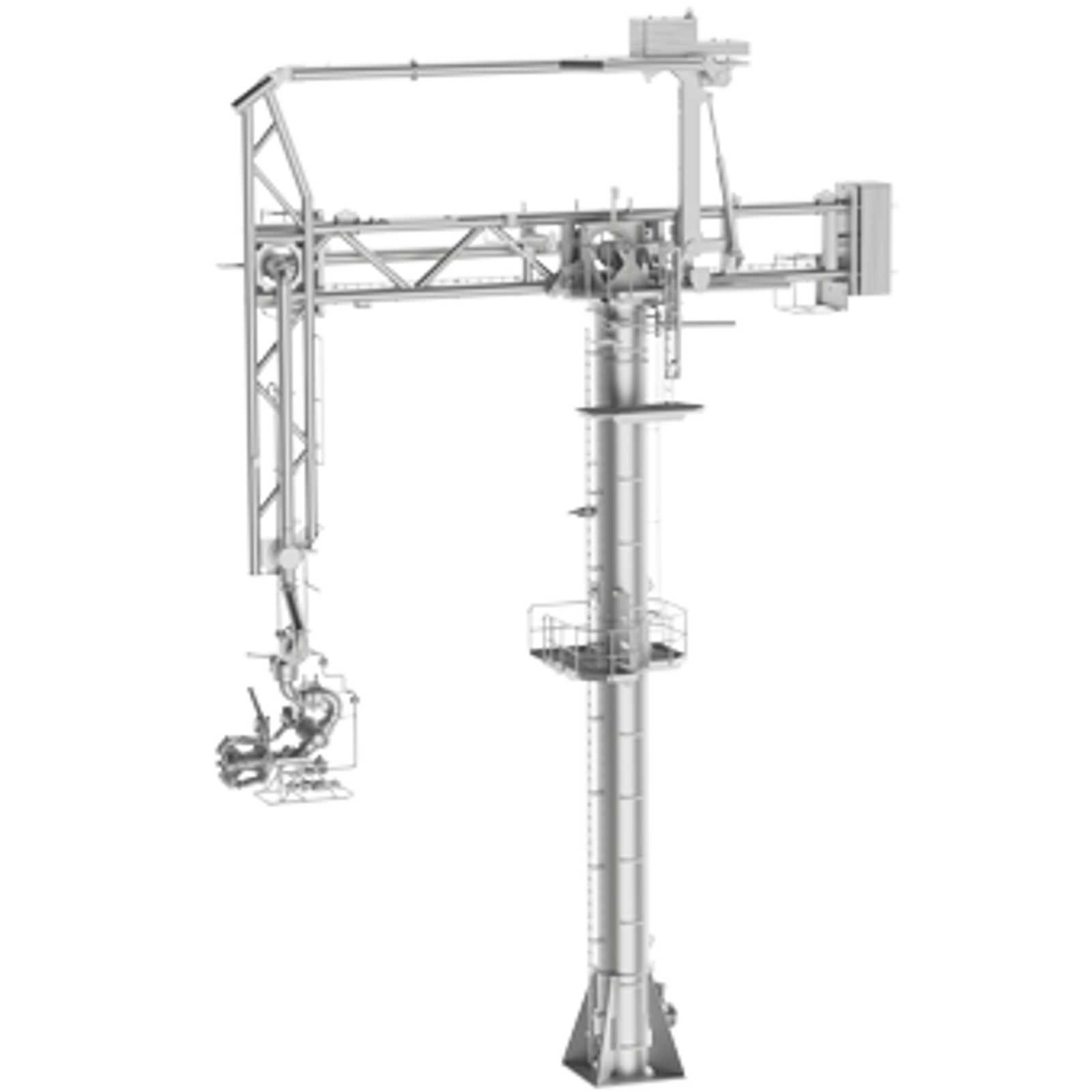

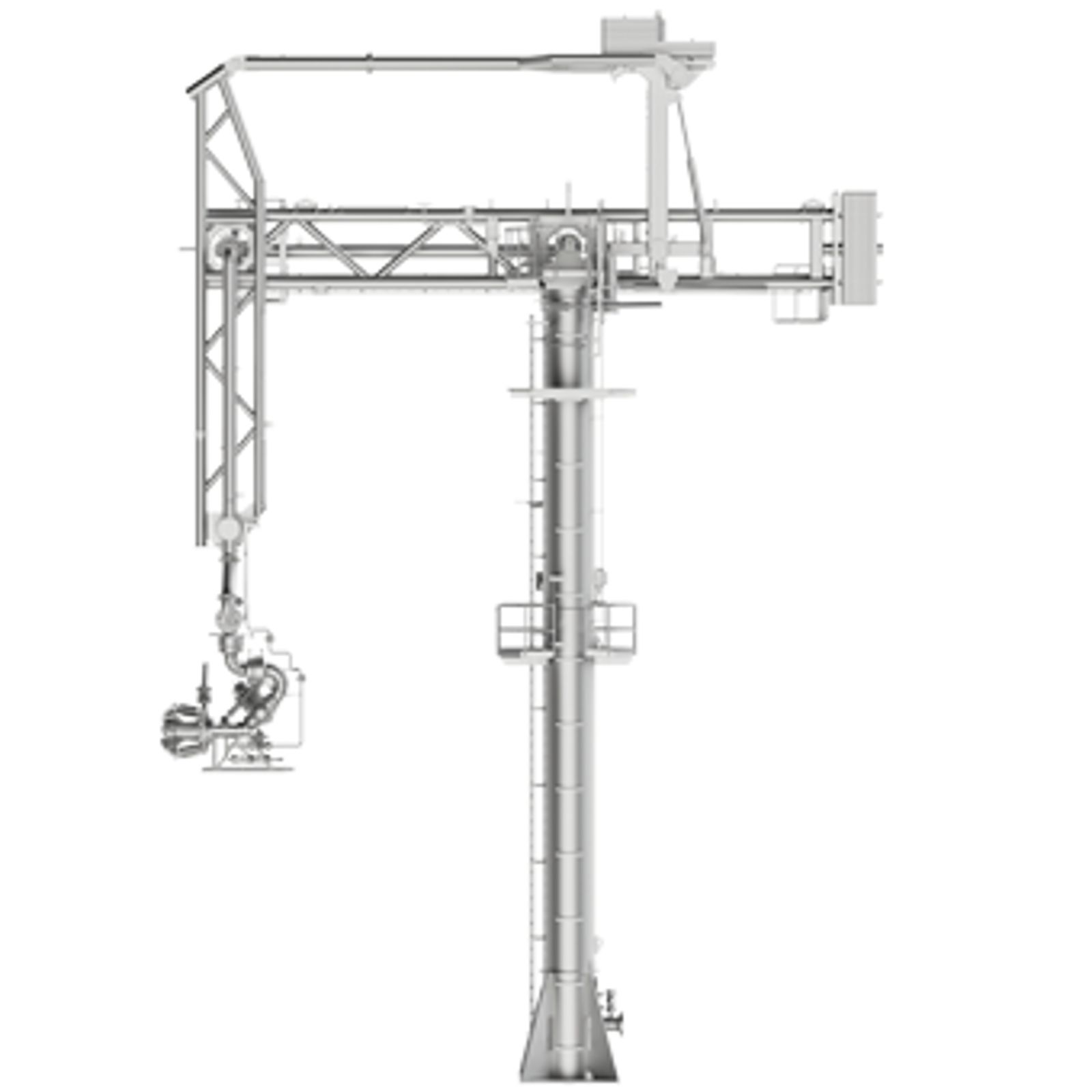

The B0300 Emco Wheaton’s High Pressure Marine Loading Arm design has proven its reliability for more than 15 years for CNG applications.
The design of Emco Wheaton’s CNG arms is based on the company’s established and successful LNG B0300 marine loading arm. For the handling of CNG, this B0300 model is capable of handling natural gas at pressures of up to 150 bar while still providing the same emergency shutdown and disconnect capabilities as arms transferring liquids.
